Add Earthmover Marketplace user guide

CHANGELOG.md

@@ -58,6 +58,10 @@ and this project adheres to [Semantic Versioning](https://semver.org/spec/v2.0.0
   (`scoring.online.mae`) and log spectral distance (`scoring.online.lsd`)
 - Scorecards gain regional, seasonal, monthly, per-init-hour and per-IC
   views with baseline overlays; GraphCast and Atlas CRPS added
+- Added user guide documentation for the Earthmover Marketplace data sources
+  (`EarthMoverERA5`, `EarthMoverBrightBandIFS`, `EarthMoverBrightBandIFS_FX`),
+  covering subscribing, authentication, usage, data hosting, writing output to
+  Arraylake and publishing a listing
 - Added `NNJAObsSatwnd`, a data source for the raw NCEP atmospheric motion
   vector dumps in the NNJA archive (1979-present), exposing satellite, subset,
   computation method, height assignment, zenith angle and quality indicators

docs/userguide/components/datasources.md

@@ -121,6 +121,14 @@ We recommend that you review the [extension examples](../../examples/index.md#ex
 examples, which will step you through the basic process of implementing your own
 data source.

+## Earthmover Marketplace
+
+Earth2Studio includes data sources that read directly from the
+[Earthmover Marketplace](https://app.earthmover.io/marketplace), a catalog of
+analysis-ready weather/climate datasets stored as Arraylake/Icechunk Zarr
+repositories. See [Earthmover Marketplace](earthmover_marketplace.md) for subscription,
+authentication and usage details.
+
 ## Contributing a Datasource

 We are always looking for new remote data stores that our users may be interested in for

docs/userguide/components/earthmover_marketplace.md

@@ -0,0 +1,314 @@
+<!-- markdownlint-disable MD013 MD033 MD046 -->
+
+# Earthmover Marketplace { #earthmover_marketplace_userguide }
+
+The [Earthmover Marketplace](https://app.earthmover.io/marketplace) is Earthmover's
+["modern, cloud-native data sharing experience for high-velocity gridded weather,
+climate, and geospatial datasets"](https://docs.earthmover.io/marketplace/data-users),
+stored as [Arraylake](https://docs.earthmover.io/) / [Icechunk](https://icechunk.io/)
+Zarr repositories.
+
+Earth2Studio ships a set of data sources under `earth2studio.data` that read directly
+from Marketplace repositories, so datasets can be used as initial conditions or
+verification data without writing any custom download or parsing code.
+
+!!! note
+    Arraylake-backed Earthmover data sources require **Python 3.12 or newer** and the
+    optional `arraylake` dependency, installed with:
+
+    ```bash
+    pip install earth2studio[data]
+    ```
+
+## Available Marketplace Data Sources
+
+| Data source | Type | Provider | Dataset (hosted repo listing) |
+| --- | --- | --- | --- |
+| [`earth2studio.data.EarthMoverERA5`](../../modules/datasources_analysis.md) | Analysis | `earthmover-public` | [ERA5 0.25° reanalysis](https://app.earthmover.io/marketplace/6a19bcfe9aa6e97720a2fad2) |
+| [`earth2studio.data.EarthMoverBrightBandIFS`](../../modules/datasources_analysis.md) | Analysis | `brightband` | [Brightband ECMWF IFS 0.25° initial conditions](https://app.earthmover.io/marketplace/697162921880507a6587c31b) |
+| [`earth2studio.data.EarthMoverBrightBandIFS_FX`](../../modules/datasources_forecast.md) | Forecast | `brightband` | [Brightband ECMWF IFS 0.1° (10 km) 15-day forecast](https://app.earthmover.io/marketplace/6971be98fc964a0d0fb66e04) |
+
+Each dataset name links to its Marketplace listing page, which is where the Arraylake
+repository is hosted and subscribed to. Dataset coverage, license and the
+**Subscribe** button all live there. Each data source class' docstring links to the
+same page. Per the listing pages themselves:
+
+<div class="grid cards" markdown>
+

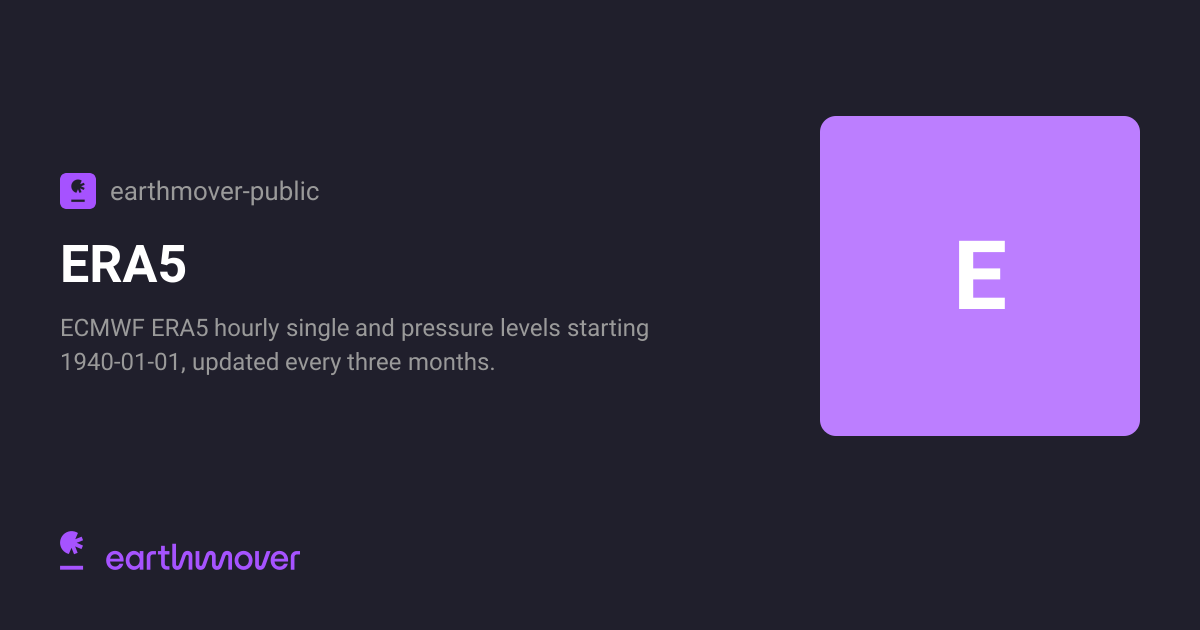

+- [![ERA5 listing](https://app.earthmover.io/marketplace/6a19bcfe9aa6e97720a2fad2/opengraph-image-9dzfy2?b1f408a208b63cfd)](https://app.earthmover.io/marketplace/6a19bcfe9aa6e97720a2fad2)
+
+    "ECMWF ERA5 hourly single and pressure levels starting 1940-01-01, updated every
+    three months."
+

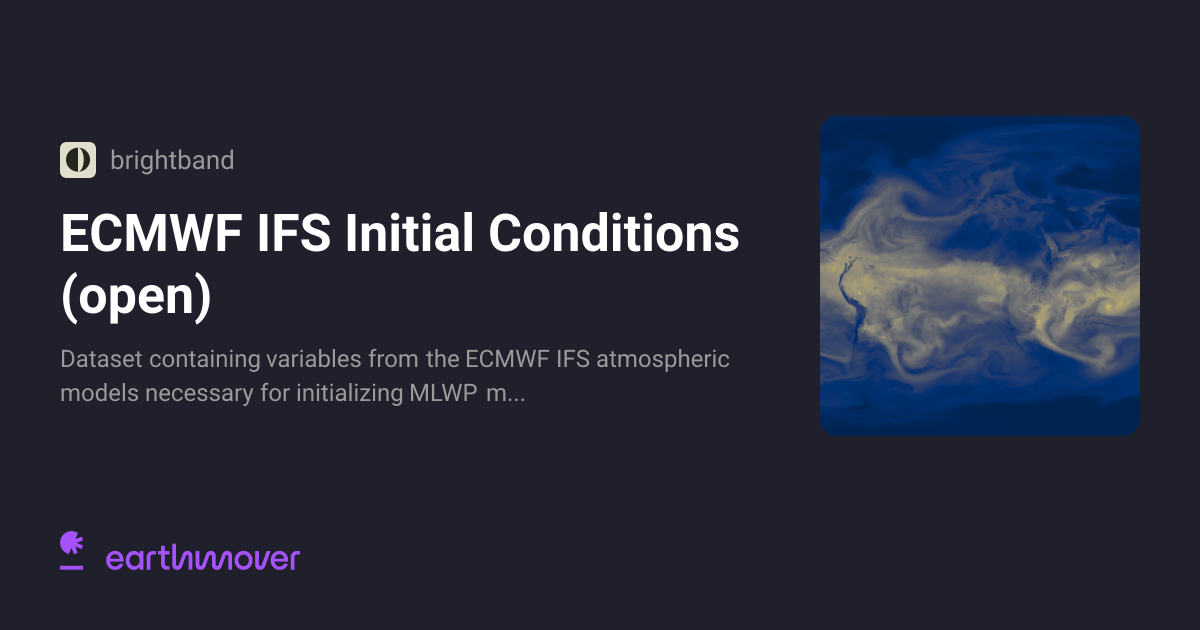

+- [![ECMWF IFS Initial Conditions (open) listing](https://app.earthmover.io/marketplace/697162921880507a6587c31b/opengraph-image-9dzfy2?b1f408a208b63cfd)](https://app.earthmover.io/marketplace/697162921880507a6587c31b)
+
+    "Dataset containing variables from the ECMWF IFS atmospheric models necessary for
+    initializing MLWP models, available 4x daily."
+
+- [![ECMWF IFS 15-day Forecast (open) listing](https://app.earthmover.io/marketplace/6971be98fc964a0d0fb66e04/opengraph-image-9dzfy2?b1f408a208b63cfd)](https://app.earthmover.io/marketplace/6971be98fc964a0d0fb66e04)
+
+    "ECMWF IFS 15-day forecast surface fields, available before ECMWF Open Data."
+
+</div>
+
+## How the data is hosted
+
+The underlying chunk data is **never copied into Earthmover's or your own storage**
+(a paid subscription's own bucket holds only metadata about which chunks you can
+access, not the data itself - see below).
+
+Per [Earthmover's storage docs](https://docs.earthmover.io/concepts/storage), "Arraylake
+works with a wide range of commercial and open-source object storage services,
+including any S3-compatible object store as well as Google Cloud Storage and Microsoft
+Azure Blob Storage," and providers typically use "BYOB - Bring your own bucket": "all
+the data live in your cloud in your own object storage bucket."
+
+[Icechunk](https://icechunk.io/) (the versioned storage format Arraylake is built on)
+tracks it with cryptographically-addressed manifests. Subscribing does not trigger a
+download:
+
+- **Free listings** are a direct subscription. Per
+  [Earthmover's provider docs](https://docs.earthmover.io/marketplace/data-providers),
+  "subscribers read data directly from [the provider's] object store" and "see your
+  full commit history and can access any version" - no data is copied, your repo just
+  points at the provider's storage.
+- **Paid listings** are "filtered subscriptions": your repo stores only metadata (which
+  chunks you're entitled to) in your own organization's bucket, while "the actual chunk
+  data is read from [the provider's] object store" - scoped to what your subscription
+  covers.
+
+Either way, "due to Icechunk's cryptographically random keys, it is not possible for
+the subscriber to discover any data not explicitly included in their manifests."
+
+Arraylake reads lazily rather than downloading whole datasets. Unlike Earth2Studio's
+other remote data sources, these classes do not use Earth2Studio's own on-disk cache
+(the `cache` constructor argument is accepted for API compatibility but unused); any
+caching beyond that is internal to the `arraylake`/Icechunk client and not something
+Earth2Studio controls or has verified.
+
+## 1. Subscribe to a dataset
+
+Marketplace datasets require an active subscription before they can be read, even for
+open/free listings:
+
+Per [Earthmover's own docs](https://docs.earthmover.io/marketplace/data-users):
+
+1. "Browse the Marketplace - Find a dataset you're interested in at
+   app.earthmover.io/marketplace" (or follow the link from the data source docstring
+   above).
+2. "Subscribe - Click the subscribe button on the listing page."
+3. "Select an Organization - Choose which Arraylake organization should house the
+   resulting repo" (you'll be prompted to create one if you don't have one yet). Note
+   this **organization name**, used to derive the repository path below.
+
+"When you subscribe to a dataset, a read-only repo appears in your Arraylake
+organization."
+
+The repo name is set by the provider and varies per listing - e.g.
+`<org>/era5-subscription` for ERA5, or
+`<org>/ecmwf-ifs-initial-conditions-open-subscription` for Brightband's IFS initial
+conditions - so check the listing page or the data source's docstring for the exact
+name.
+
+"Many datasets on the Marketplace are freely available. Anyone with an Arraylake
+account can subscribe to free listings instantly." Free listings "use direct
+subscriptions" - "your repo is a complete mirror of the provider's repo," including
+full commit history.
+
+Paid listings are premium offerings that "use filtered subscriptions": "instead of
+mirroring the provider's entire repo, you receive a repo scoped to specific variables,
+time ranges, or spatial regions," and require a
+[Professional Arraylake plan](https://docs.earthmover.io/marketplace/faq).
+
+Attempting to read a repository without an active subscription raises a
+`PermissionError` pointing back to the listing page.
+
+!!! note
+    "Subscriptions are not anonymous. When you subscribe to a dataset, the data
+    provider can see your organization name and contact email."
+
+!!! note "License & cost"
+    Per [Earthmover's FAQ](https://docs.earthmover.io/marketplace/faq): "The
+    Marketplace supports both free/open data and paid subscriptions." For free
+    listings, "no payment needed to access the data"; "many datasets on the
+    Marketplace are completely free" and "anyone with an Arraylake account can
+    subscribe to free listings instantly and start querying data right away." For
+    paid listings, "custom pricing [is] negotiated between provider and the user," and
+    "paid datasets require a Professional plan." Each listing page states its own
+    license terms, set by the provider, not Earth2Studio - check it before
+    subscribing.
+
+## 2. Authenticate
+
+Set an [Arraylake](https://docs.earthmover.io/) API key. Per
+[Earthmover's org-access docs](https://docs.earthmover.io/setup/org-access), "to create
+a new API key, click on the big purple 'New API Client' button" in your organization's
+settings on [app.earthmover.io](https://app.earthmover.io), "enter a name for the API
+key, then select the appropriate permissions (read/write), and the key's lifetime."
+
+The resulting "secret tokens are a single string, prefixed with the `ema_` identifier"
+(e.g. `ema_123456789123456789_123456789123456789123456789`) and "expire after 1 year by
+default." Tokens "should be considered secret, and should not be shared publicly":
+
+```bash
+export EARTHMOVER_API_KEY="<your-arraylake-api-key>"
+export EARTHMOVER_ORGANIZATION="<your-org-name>"
+```
+
+`EARTHMOVER_ORGANIZATION` is only needed if you want the data source to derive the
+subscription repository name automatically (see below). Alternatively, pass a
+pre-authenticated [`arraylake.AsyncClient`](https://docs.earthmover.io/reference/client)
+directly to the data source via the `client` argument.
+
+## 3. Use the data source
+
+With the repo name derived from `EARTHMOVER_ORGANIZATION`:
+
+```python
+from datetime import datetime
+from earth2studio.data import EarthMoverERA5
+
+ds = EarthMoverERA5()
+da = ds(time=datetime(2021, 6, 1), variable=["t2m", "u10m", "z500"])
+```
+
+Or pass an explicit `org/repo` to read a specific repository:
+
+```python
+from datetime import datetime
+from earth2studio.data import EarthMoverBrightBandIFS
+
+ds = EarthMoverBrightBandIFS(repo="my-org/ecmwf-ifs-initial-conditions-open-subscription")
+da = ds(time=datetime(2024, 1, 1), variable=["t2m", "z500", "u850"])
+```
+
+Forecast sources additionally take a `lead_time`:
+
+```python
+from datetime import datetime
+
+import numpy as np
+from earth2studio.data import EarthMoverBrightBandIFS_FX
+
+ds = EarthMoverBrightBandIFS_FX()
+da = ds(
+    time=datetime(2024, 1, 1),
+    lead_time=np.array([np.timedelta64(h, "h") for h in [0, 6, 12]]),
+    variable=["t2m", "u10m"],
+)
+```
+
+!!! note
+    Pass `datetime` objects (or a list/array of them) directly to a data source, as
+    shown above; passing a raw ISO string is not supported. Workflow entry points such
+    as `earth2studio.run.deterministic` convert `list[str]` time inputs for you via
+    `earth2studio.utils.time.to_time_array`, but calling a data source directly does not.
+
+As with any [data source](datasources.md#datasources_userguide), the returned
+`xr.DataArray` can be used directly for postprocessing or moved to the GPU as a model
+initial state.
+
+## Writing output to Arraylake
+
+An Arraylake repository is an [Icechunk](https://icechunk.io/) repository, so
+Earth2Studio's [`IceChunkBackend`](io.md) writes to it directly. Arraylake owns the
+catalog and vends the bucket credentials, so instead of constructing an
+`icechunk.Storage` yourself, ask the `arraylake` client for the repository's storage
+object and pass it to the backend:
+
+```python
+import os
+
+import arraylake
+from earth2studio.io import IceChunkBackend
+
+client = arraylake.Client(token=os.environ["EARTHMOVER_API_KEY"])
+storage = client.get_icechunk_storage("your-org/your-repo")
+
+io = IceChunkBackend(storage=storage, branch="main")
+```
+
+The repository must already exist in your Arraylake organization; create it once with
+`client.create_repo("your-org/your-repo")` or in the Arraylake web UI. From there the
+backend behaves exactly as with any other Icechunk store: `IceChunkBackend` opens a
+writable session on `branch`, each workflow writes through the usual
+`add_array` / `write` calls, and `commit()` records an Icechunk commit that is visible
+in Arraylake's version history. See the [IO Backends](io.md) guide for the backend's
+commit and flush semantics, and
+[Earthmover's version control guide](https://docs.earthmover.io/guide/version-control)
+for how those commits appear on the Arraylake side.
+
+### Publishing your own Marketplace listing
+
+Writing to your own repo is enough to use it as a `repo="org/repo"` data source (see
+[Custom or private Arraylake repositories](#custom-or-private-arraylake-repositories)
+below).
+
+Publishing it as a Marketplace listing so others can subscribe is a separate,
+Earthmover-account-level process, per
+[Earthmover's provider docs](https://docs.earthmover.io/marketplace/data-providers):
+
+1. Create an organization at
+   [app.earthmover.io/orgs/new](https://app.earthmover.io/orgs/new) - "the public face
+   for your data."
+2. Upgrade to the Professional tier by emailing `support@earthmover.io`; this is
+   required to become a provider.
+3. "Configure a storage bucket using Credential Vending in your cloud provider of
+   choice" (bring-your-own-bucket), or request Earthmover-managed storage from
+   support.
+4. Prepare the data: "create a new Icechunk repo," import existing Icechunk data, or
+   write it with Xarray, or write Earth2Studio output into it with `IceChunkBackend`
+   as shown above.
+5. In your org settings, open the **Marketplace** tab and click **"+ Create
+   Listing"**, then fill in the repository, listing name and description, thumbnail
+   URL, README, license terms, and pricing model.
+6. Choose a pricing model: for free listings, "subscribers get access to everything in
+   the repo"; for paid listings, you "select exactly which variables and groups are
+   available to subscribers."
+7. Set the listing status to **Published** (requires a repository attached) - it can
+   otherwise be left **Unpublished** or **Coming Soon**.
+
+## Variable resolution
+
+[Marketplace](https://app.earthmover.io/marketplace) repositories are not curated by
+Earth2Studio, so each Earthmover data source resolves Earth2Studio variable ids (e.g.
+`t2m`, `z500`) against the repository's native variable metadata at read time,
+matching on `paramId`, `shortName` / `cfVarName`, or CF `standard_name` metadata
+attributes, in that priority order.
+
+If a variable cannot be unambiguously resolved, the data source raises a `ValueError`
+listing which variables are available in the repository, rather than silently
+returning the wrong field.
+
+## Custom or private Arraylake repositories
+
+The Earthmover data sources are not limited to catalog listings from the
+[Marketplace](https://app.earthmover.io/marketplace).
+Any [Arraylake](https://docs.earthmover.io/) repository with a compatible CF-annotated Zarr layout,
+including your own private repositories, can be read by passing `repo="org/repo"` explicitly,
+as shown above.
+
+!!! warning
+    Each class also fixes which Zarr group(s) it opens, so a custom repo must match
+    that layout: `EarthMoverERA5` always opens the `single/spatial` and
+    `pressure/spatial` groups, while `EarthMoverBrightBandIFS` and
+    `EarthMoverBrightBandIFS_FX` open the repository's root group. A custom repo with a
+    different group layout will fail to connect even if its variable metadata is
+    otherwise compatible.
+
+## Troubleshooting
+
+| Error | Cause | Fix |
+| --- | --- | --- |
+| `ValueError: Pass repo='org/repo' or set EARTHMOVER_ORGANIZATION ...` | No repo could be derived | Set `EARTHMOVER_ORGANIZATION` or pass `repo=` explicitly |
+| `ValueError: Set EARTHMOVER_API_KEY ...` | No credentials found | Set `EARTHMOVER_API_KEY` or pass an authenticated `client=` |
+| `PermissionError: Access to Arraylake repo '...' was denied` | No active subscription | Subscribe on the dataset's Marketplace listing page |
+| `ValueError: Arraylake repo '...' was not found` | Wrong repo name, or subscription not yet active | Double check the `org/repo` name and subscription status |
+| `ValueError: Could not resolve Earth2Studio variable '...'` | Repository lacks the expected metadata attributes for that variable | Check the error's list of available repository variables |
+
+## Further reading
+
+- [Earthmover Marketplace](https://app.earthmover.io/marketplace): browse listings
+- [Marketplace docs: Data Users](https://docs.earthmover.io/marketplace/data-users): subscription mechanics
+- [Marketplace docs: FAQ](https://docs.earthmover.io/marketplace/faq): pricing and plan requirements
+- [Arraylake client installation](https://docs.earthmover.io/setup/installation): `arraylake` package setup

mkdocs.yml

@@ -517,6 +517,7 @@ nav:
     - Diagnostic Models: userguide/components/diagnostic.md
     - Data Assimilation Models: userguide/components/data_assimilation.md
     - Data Sources: userguide/components/datasources.md
+    - Earthmover Marketplace: userguide/components/earthmover_marketplace.md
     - Perturbations: userguide/components/perturbation.md
     - IO Backends: userguide/components/io.md
     - Statistics: userguide/components/statistics.md
